DIY Pick and Place Design Files

DIY Pick and Place Design Files available to download from GitHub

Date 24 June 2014
Views 10,443
Time to read 1 minutes read

GitHub Files

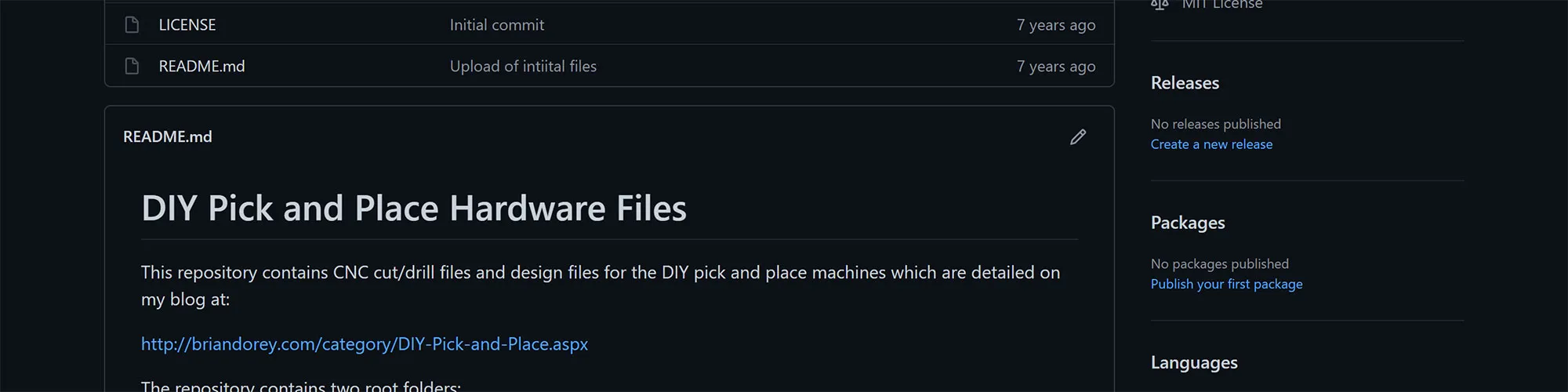

We have collated all the design files we saved during the development and build of our DIY manual pick and place machine and the DIY automatic pick and place machine and we have uploaded the files to our GitHub account into a new repository at https://github.com/briandorey/DIY-Pick-and-Place-Hardware

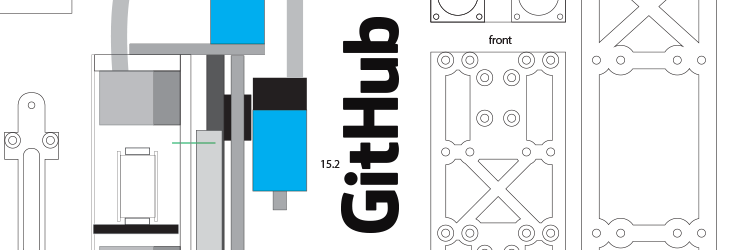

The repository contains CNC cut/drill files and design files for the DIY pick and place machines

The new repository contains two root folders:

Auto Pick and Place Machine - This folder contains design and CNC files for the automatic DIY pick and place machine.

Manual Pick and Place Machine - This folder contains design and CNC files for the manual pick and place machine.

All the design files are in Adobe Illustrator format. Not all the folders contain the design files as some parts were very simple and so we only saved the cut .nc and drill files.

The CNC files were produced using CamBam studio from http://www.cambam.info
