Camera mount with finder scope fitting for HEQ5 PRO mount

Camera mount with finder scope fitting for HEQ5 PRO mount for nighttime photography

Date 21 December 2011
Views 9,439
Time to read 1 minutes read

After getting some good photos with the new telescope kit purchased in October, we thought it would be good to be able to make use of the tracking facilities of the HEQ5 PRO mount with the normal camera and wider lenses to get general astronomy-wide field photographs. I purchased a dovetail bracket, camera quick-release plate and mount and extra mounting bracket for my finder scope and using an alloy block and some custom brackets, made the following mount for the camera with the finderscope attached to set up the alignment and point at the stars to check alignment.

Parts Used:

  • SkyWatcher 9x50 Sky-Watcher Finderscope with mounting bracket
  • Manfrotto quick-release mount
  • Dovetail mount to fit HEQ5 PRO
  • Alloy machines to fit mounts and brackets

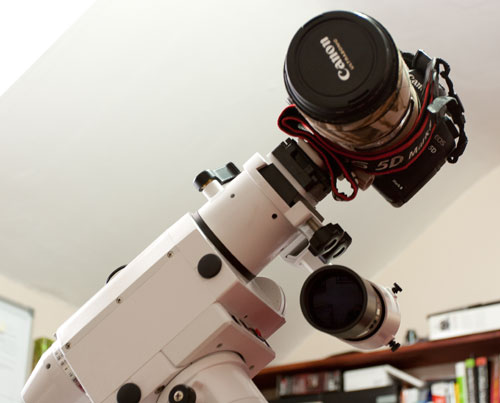

front view of the camera mount
Front view of the mount

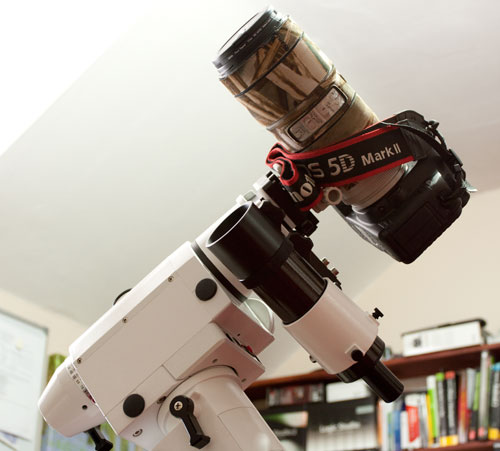

side view of the camera mount
Side view of the mount

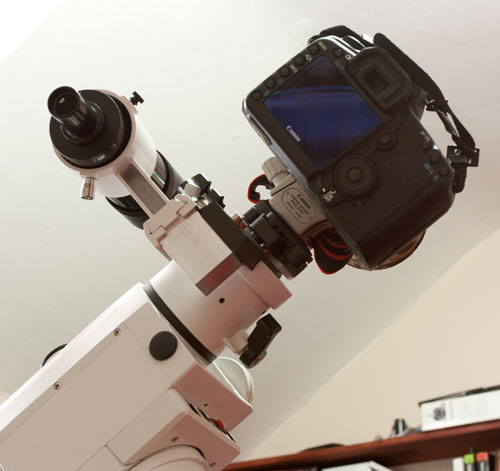

back view of the camera mount
Back view of the mount
