Workshop Tool Storage Rack

Building a bespoke oak and pine wooden storage rack for the hand tools in our workshop.

Date 02 October 2019
Views 5,935
Time to read 3 minutes read

Tool Storage Rack

In our loft workshop, we frequently use a wide variety of electrical hand tools and screwdrivers. Previously, these tools were stored on the wall using plastic pipe clips and magnetic tool holders. However, the magnetic tool holder was unreliable, often causing the screwdrivers to fall. Additionally, our growing collection of pliers and wire cutters exceeded the capacity of the plastic clips. To address these issues, we decided to design and build a new tool rack to keep our workbench clear and organised for our projects.

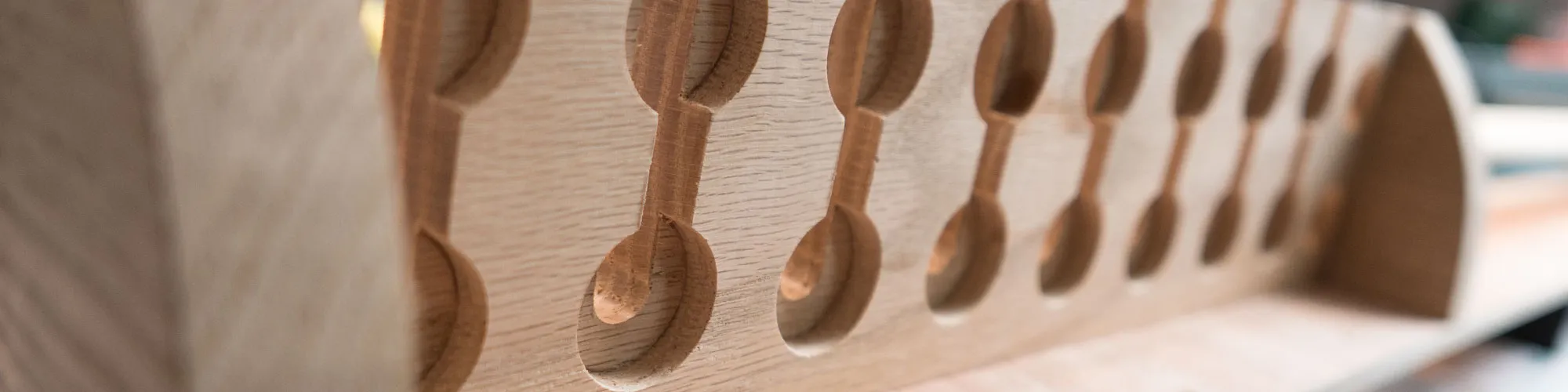

Andrew worked on designing a combined screwdriver and pliers rack using Fusion 360. This new design allowed us to cut a custom screwdriver shelf with recessed holes and access slots from a 20mm thick offcut of oak timber. The end plates for the shelf and the pliers rack were also crafted from the same oak plank, ensuring a cohesive and sturdy structure.

For pliers and cutters storage, we used a strip of pine, which was rounded and then glued into recesses in the side plates. This provided a secure and accessible storage solution for these frequently used tools.

To complete the new storage rack, we used 9mm hardwood plywood for the back, adding strength and stability to the overall structure. Once assembled, we applied a gloss varnish to all the components, enhancing the appearance and durability of the rack.

The old tool clips
The old tool clips on the wall which are 3/4 inch plastic pipe clips.
Lots of tools
All the tools from the old wall clips
3D Render
3D Render
Ready to varnish
Ready to varnish
All the tools on the new rack
All the tools on the new rack

Benefits of the Custom Tool Rack

  • Enhanced Organisation: The new tool rack will now allow us to keep all our tools neatly organised and easily accessible, making our workflow more efficient.
  • Increased Storage Capacity: The custom design accommodates our entire collection of screwdrivers, pliers, and wire cutters, resolving the issue of limited storage space.
  • Improved Durability: Constructed from high-quality oak and pine, the tool rack is robust and built to last, withstanding the demands of a busy workshop.
  • Clear Workbench: By storing tools on the wall, the workbench remains clear and available for ongoing projects, improving overall productivity.
  • Aesthetic Appeal: The gloss varnish finish not only protects the wood but also gives the tool rack a polished, professional look, which is important when it is visible in photo and video backgrounds.

I have added the PDF plans for the screwdriver shelf in PDF format to download: Screwdriver shelf plan and Side Plate plan
