Pick and Place Controller Board

Following the previous Pick and Place Controller V3 Part 1 post we have now built and installed the new control board for the pick and place machine.

While building and testing the board we found an issue with one of the pins on the main microcontroller that needed to be connected to the USB port's input power so we used a small wire to add this to the board.

Once the new KFlop motion controller was installed and the new driver and power board were fitted we found an issue with the break-beam sensors used on the X and Y axis not being recognised by the KFlop board. To resolve this we used a pair of buffers to give a cleaner logic level shift when the machine reaches the homing / limit sensors.  Another issue we found once the PCBs arrived was the RJ45 socket being backwards but this turned out to be a good thing as the space to fit an RJ45 plug and cable was very restricted so we connected the wires direct to the board.

The windows application which we used to drive the previous board via Mach3 is being rebuilt to work with the standalone motion controller and the new microcontroller is controlled via USB commands.

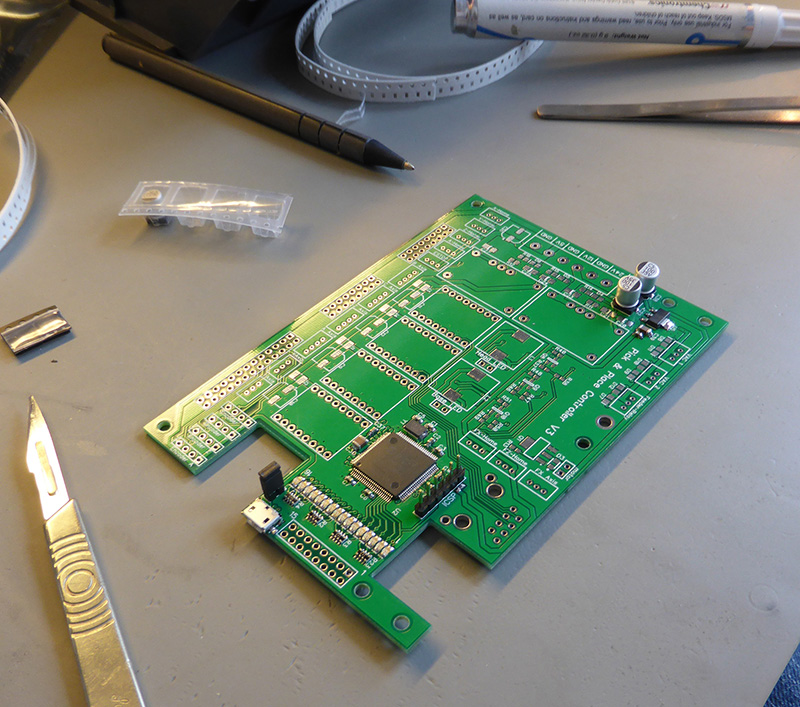

Click to view larger image of Microcontroller fitted

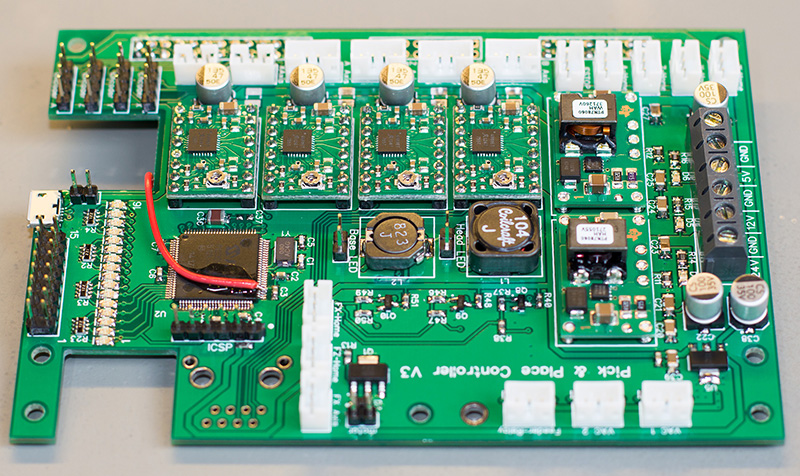

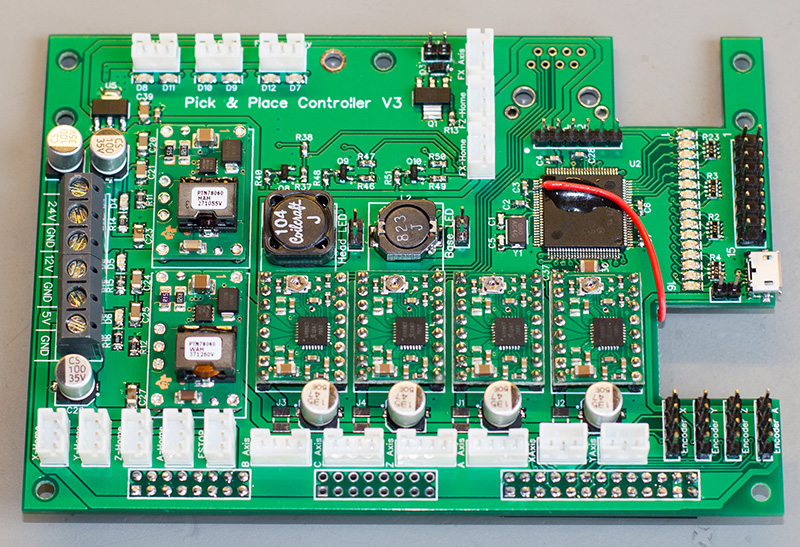

Click to view larger image of Board Top

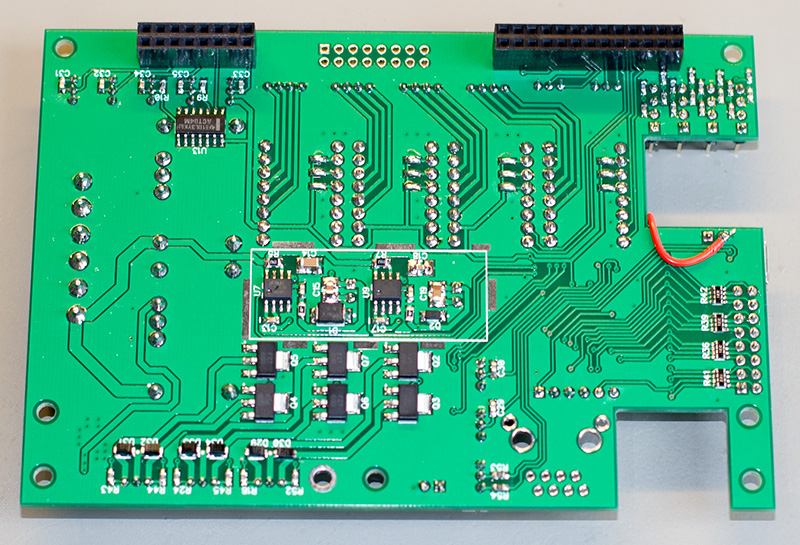

Click to view larger image of Base of board
Click to view larger image of Board Top

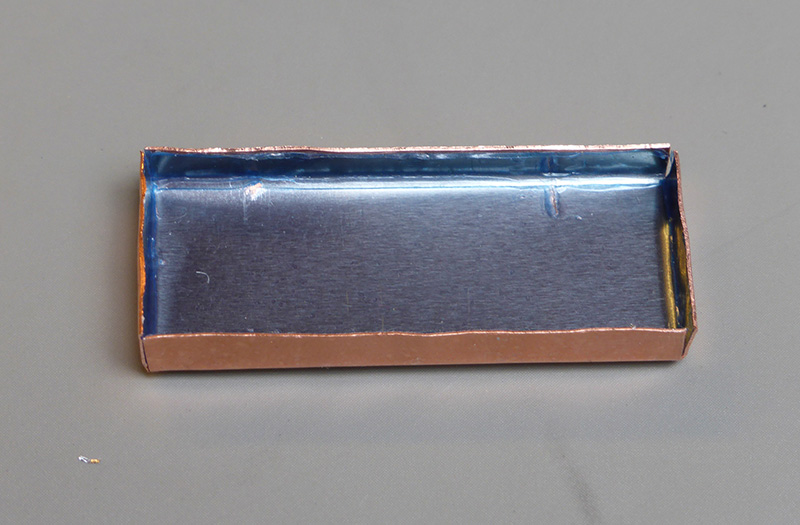

Click to view larger image of Copper RF Shield

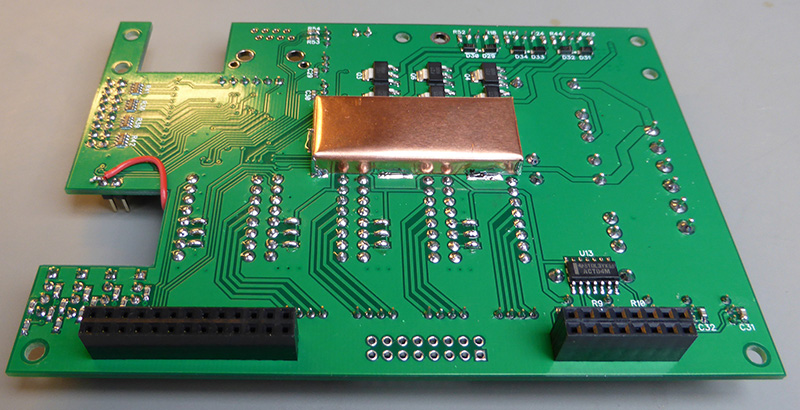

Click to view larger image of RF Shield fitted
RF Shield fitted

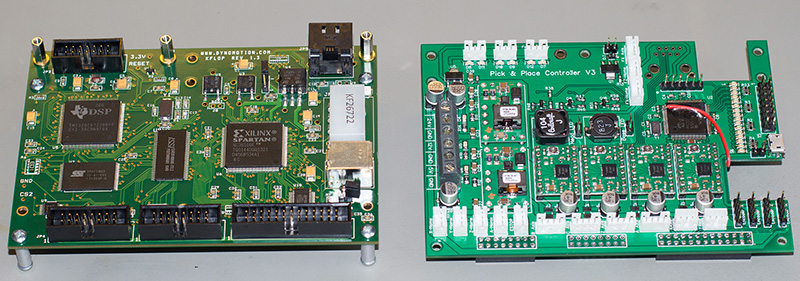

Click to view larger image of KFlop controller
Click to view larger image of Checking fit on KFlop

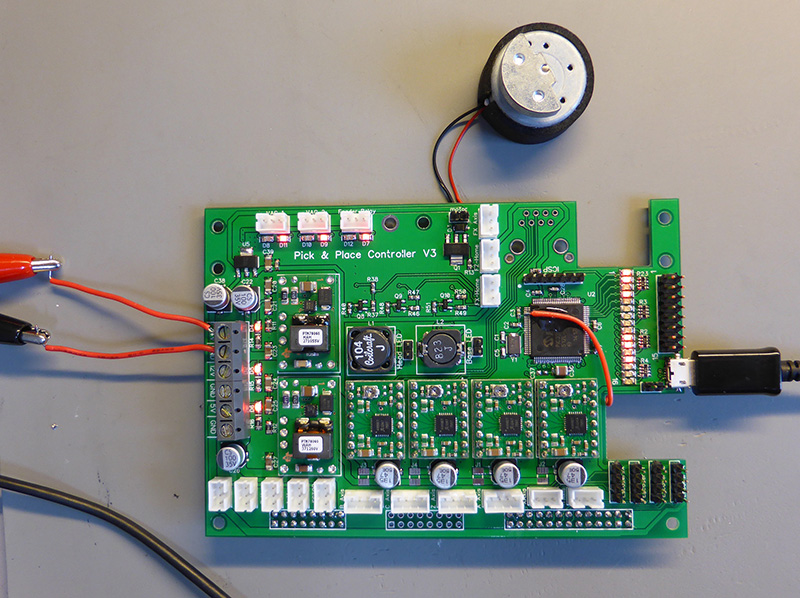

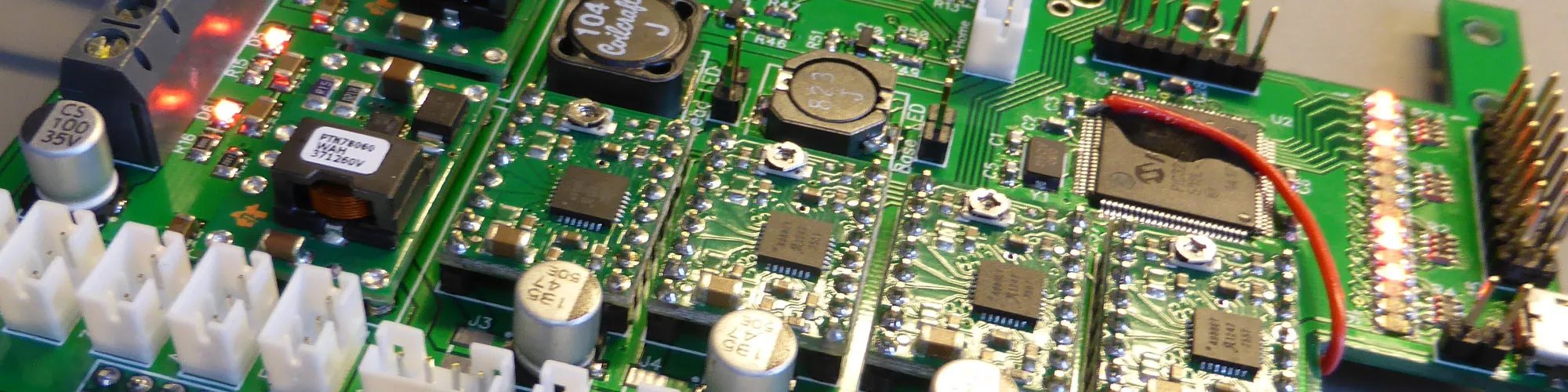

Click to view larger image of Testing Board Functions

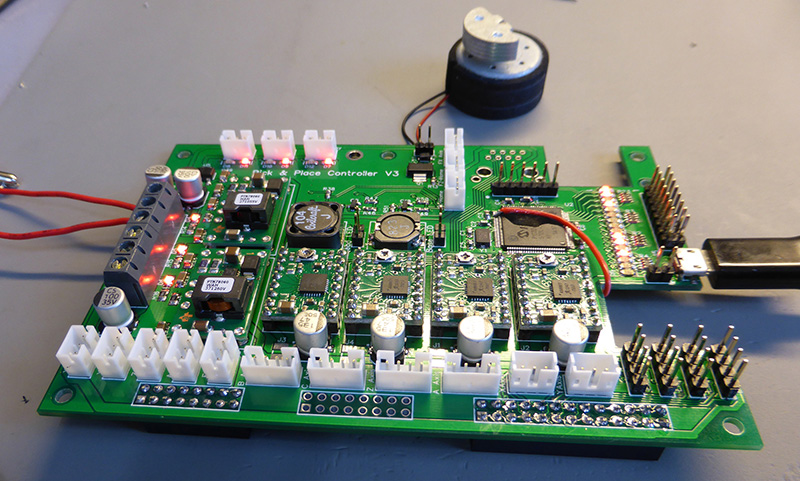

Click to view larger image of Testing Board Functions

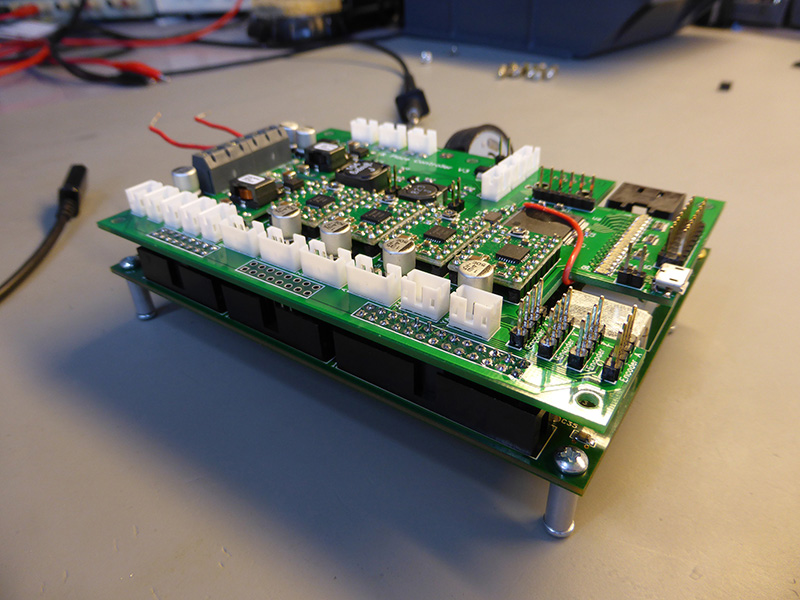

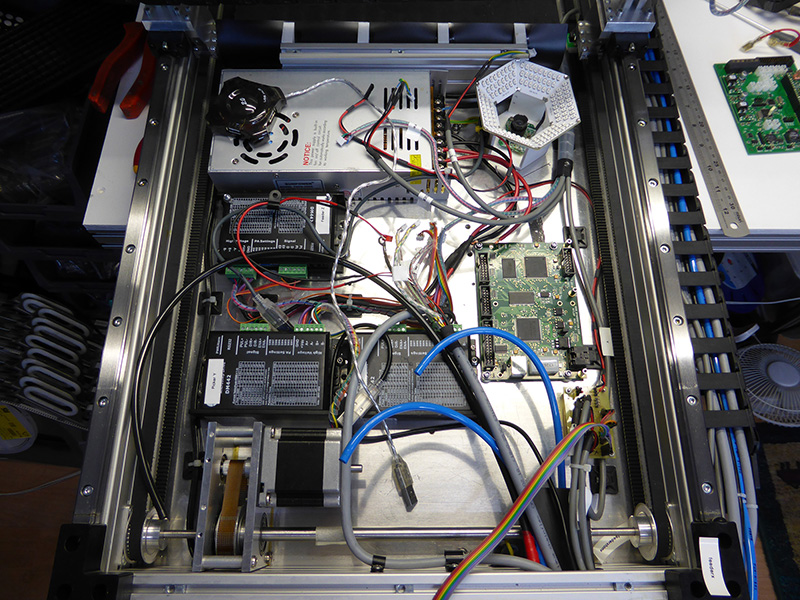

Click to view larger image of KFlop installed

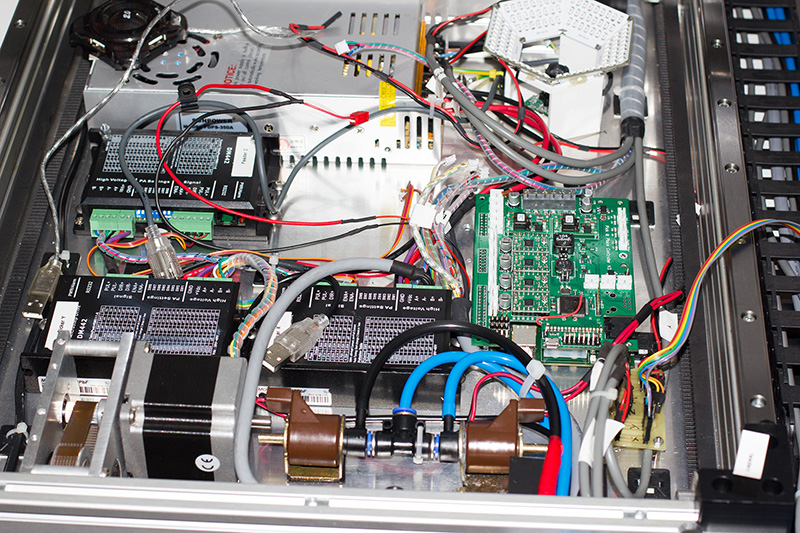

Click to view larger image of Automotive Valves Fitted

I am working on a new version of the control software for the pick-and-place machine using a Windows WPF application and .NET 4.5 which I hope to have running soon. The new application will make use of the cameras to allow the creation of the XML PCB placement files using the camera on the picker head to move it to the location of each component and then save the X/Y points into the PCB placement file.

Initial testing of the new control board and motion controller has shown a greatly increased speed for the stepper motors and once everything has been calibrated we should be able to place components at speeds of a component every two seconds for tape feeder supplied parts.

The PCB files, software and Microcontroller code are available on my GitHub page on github.com/briandorey/PNPControllerKFlop

The microcontroller code was written and compiled with MPLAB from .microchip.com and uses the XC32 compiler
